Waterproofing That Lives Inside the Concrete
Engineered by ConChem Labs®, CrystaFlex™ is a high-performance integral crystalline waterproofing admixture designed to enhance the durability, impermeability, and long-term structural integrity of concrete.
Unlike surface-applied systems, CrystaFlex™ becomes a permanent part of the concrete matrix — protecting from within and delivering measurable performance against water ingress, chlorides, sulphates, and hydrostatic pressure.
Designed for performance-driven construction, it integrates seamlessly into standard concrete practices without altering conventional mix procedures.
Why CrystaFlexTM?
Surface membranes can deteriorate. External coatings can fail. CrystaFlex™ works internally — where durability truly matters.
By activating a crystalline reaction within the concrete matrix, it transforms ordinary concrete into a dense, water-resistant structural element capable of long-term protection in aggressive environments.
It is not a coating. It is structural waterproofing.
Active Crystalline Technology
Active Crystalline Technology improves concrete durability by blocking pores, reducing water penetration, and enabling self-sealing of microcracks.
Forms additional C-S-H gel structures within the concrete matrix.
Generates insoluble crystalline formations that block pores and capillaries.
Reduces permeability and restricts water migration.
Enhances resistance to chloride and sulphate attack.
Improves performance under hydrostatic pressure.
Supports autogenous crack-sealing of microcracks up to 0.3–0.5 mm over time.
Performance Benefits
Significant reduction in concrete permeability
Integral, non-leachable waterproofing system
Improved resistance to aggressive chemicals
Enhanced durability in wet and high-humidity conditions
Increased service life of reinforced concrete structures
Reduced lifecycle maintenance costs
Potential elimination of external waterproofing layers.
Applications

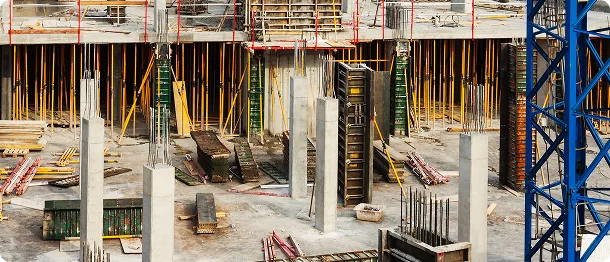

Residential & Commercial Structures
Foundations, basements, slabs, columns, beams, footings
Water-Retaining Structures
Water tanks, sumps, swimming pools, lift pits
Water-Retaining Structures
Water tanks, sumps, swimming pools, lift pits
Utility & Light Industrial Structures
Equipment foundations, utility rooms, service chambers
Repair & Micro-Concrete Applications
Repair mortars, screeds, and durability enhancement systems
Repair & Micro-Concrete Applications
Repair mortars, screeds, and durability enhancement systems
Method of Use

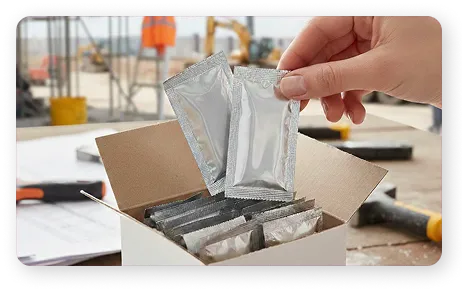

Remove Sachets
- Remove the required number of sachets as per recommended dosage.
Add Sachets
- Add the unopened water-soluble sachet directly into the concrete mixer.
Mixing Sachets
- Allow standard mixing time to ensure uniform dispersion.
Seal Sachets
- Do not cut or open the sachet. it dissolves completely during mixing.
Remove Sachets
- Remove the required number of sachets as per recommended dosage.
Add Sachets
- Add the unopened water-soluble sachet directly into the concrete mixer.
Mixing Sachets
- Allow standard mixing time to ensure uniform dispersion.
Seal Sachets
- Do not cut or open the sachet. it dissolves completely during mixing.
Technical Considerations (Specification-Oriented)
Integral crystalline admixture that reduces permeability and improves durability with pore-blocking and microcrack self-sealing.
Type
Integral crystalline waterproofing admixture
Form
Powder (water-soluble unit-dose packaging)
Compatibility
Suitable with OPC, PPC, PSC-based concrete systems
Mechanism
Reactive crystalline pore-blocking technology
Crack-Sealing Capacity
Up to 0.3–0.5 mm (autogenous healing under moisture presence)
Effect
Reduced permeability and enhanced durability performance
Performance Benefits
Protects embedded reinforcement from moisture and chloride ingress
Minimizes long-term repair interventions
Improves structural reliability in wet exposure conditions
Contributes to sustainable construction through extended service life
